Place of Origin: |
Foshan, Guangdong, China |
Brand Name: |
Wintom |
Model Number: |
PW90/PW110/PW120/PW150 |
Certification: |
No third-party product certification |
Minimum Order Quantity: |
No requirements |
Price: |
Calculation based on order requirements |
Packaging Details: |
Cardboard box packaging, size adjusted according to order quantity. |
Delivery Time: |
Determined based on order quantity |
Payment Terms: |
Bank corporate transfer |
Supply Ability: |
Standard products have a daily production capacity of over 50 sets. |
1)Wind resistance: Unlike ordinary indoor roller blinds, its mechanism uses a zipper-type interlocking guide rail to lock the curtain fabric, solving the problems of ordinary roller blinds derailing, bulging and tearing in strong winds; it can withstand typhoons of level 10 and above.
2)Energy-saving shading: blocks 90%–98% of ultraviolet rays, cools indoor temperature by 5–10℃ in summer, reduces air conditioning energy consumption by 20%–30%, and meets the energy-saving requirements of green buildings ;
3)Additional features : rainproof, privacy barrier, insect repellency, noise reduction;
4)Durability: The main body is made of aluminum alloy, which is resistant to salt spray and acid rain;
5)Drive and control: It adopts a silent tubular motor drive and can be controlled by remote control, panel control, mobile APP, KNX and other intelligent bus control.
|
Product Name |
Product width (mm) |
Product height (mm) |
Product area (m²) |
|
PW90 Windproof Roller Shutter |
800~3000 |
≤ 2500 |
≤ 6 |
|
PW110 Windproof Roller Shutter |
700~3000 |
≤ 3000 |
≤ 9 |
|
PW120 Windproof Roller Shutter |
800~4500 |
≤ 5000 |
≤ 15 |
|
PW150 Windproof Roller Shutter |
850~5000 |
≤ 5000 |
≤ 18 |
· Home decoration: high-rise balcony, villa sunroom, courtyard gazebo, terrace;
· Commercial: Shop windows along the street, hotel outdoor corridors, and outdoor dining areas;
· Public buildings: office building curtain walls, stadium skylights, schools, hospitals;
· Special: Outdoor sunshade in coastal typhoon cities and northwestern sandstorm areas.
|
Product Name |
PW90 Windproof Roller Shutter |
PW110 Windproof Roller Shutter |
PW120 Windproof Roller Shutter |
PW150 Windproof Roller Shutter |
|

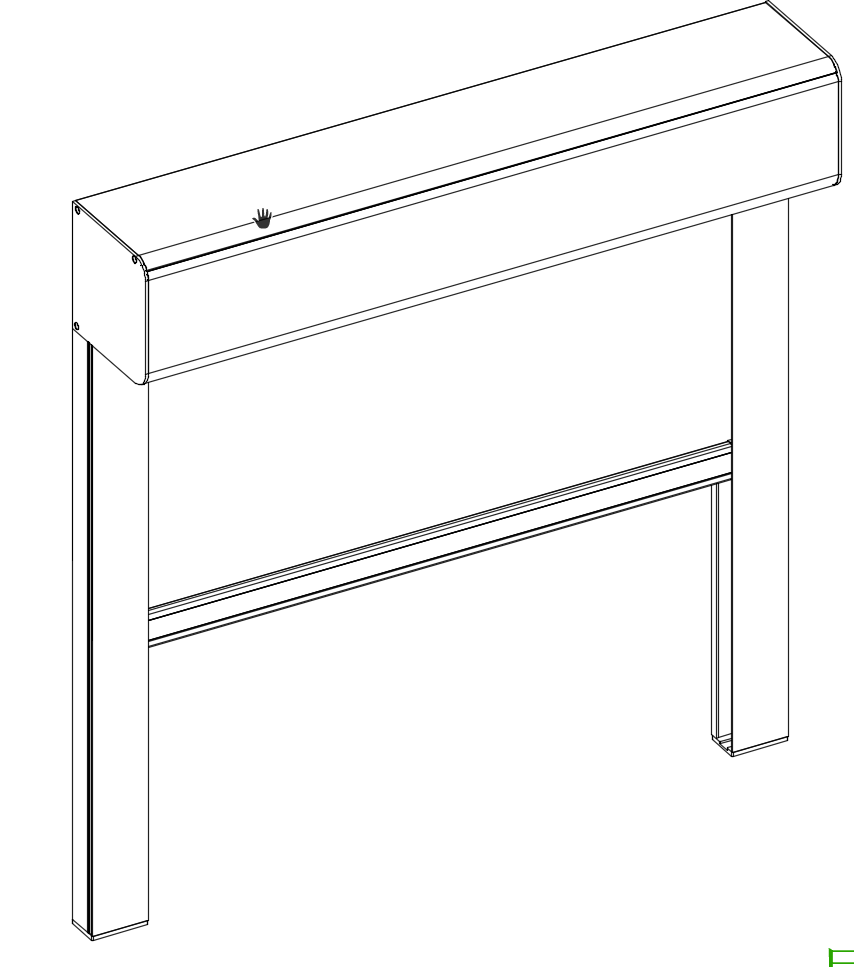

Product illustration |
|
|||
|

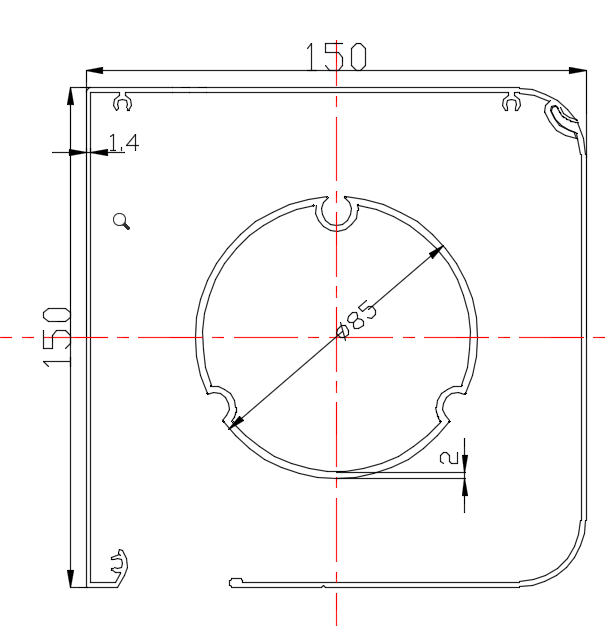

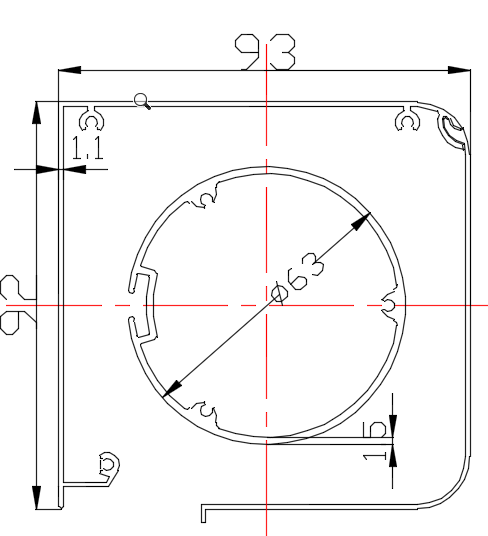

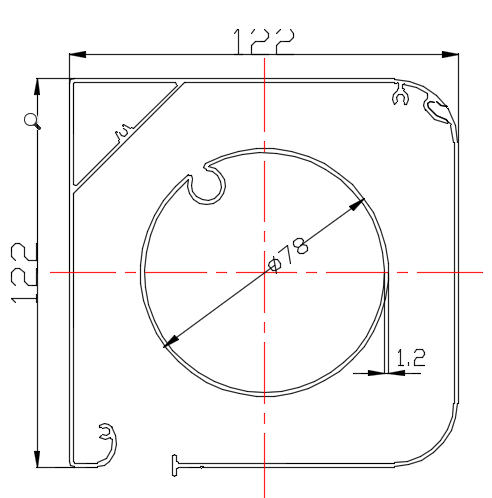

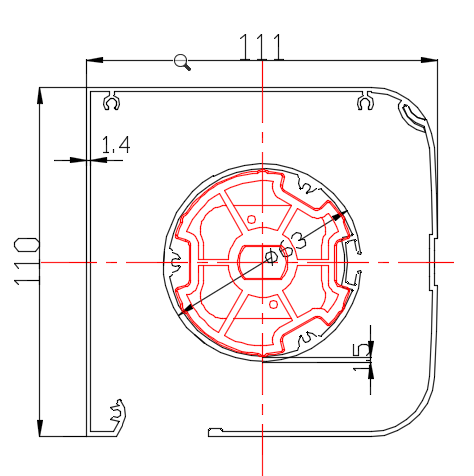

Cover size |
|
|
|
|
|

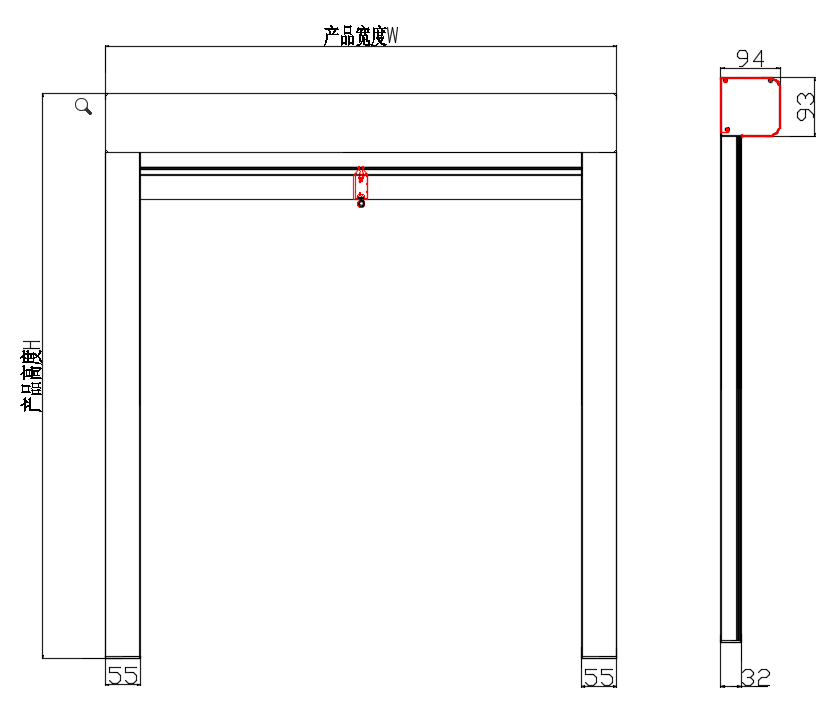

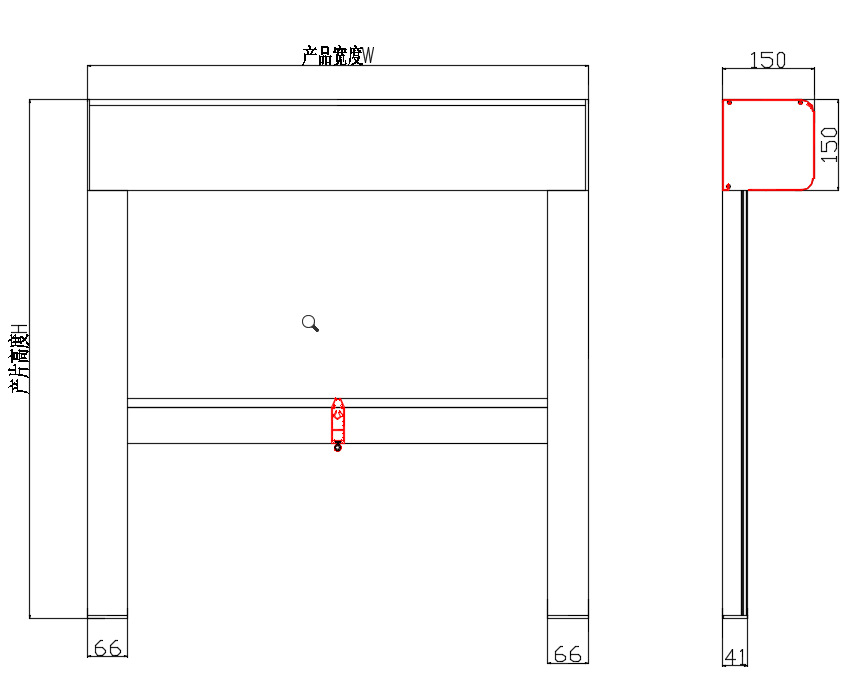

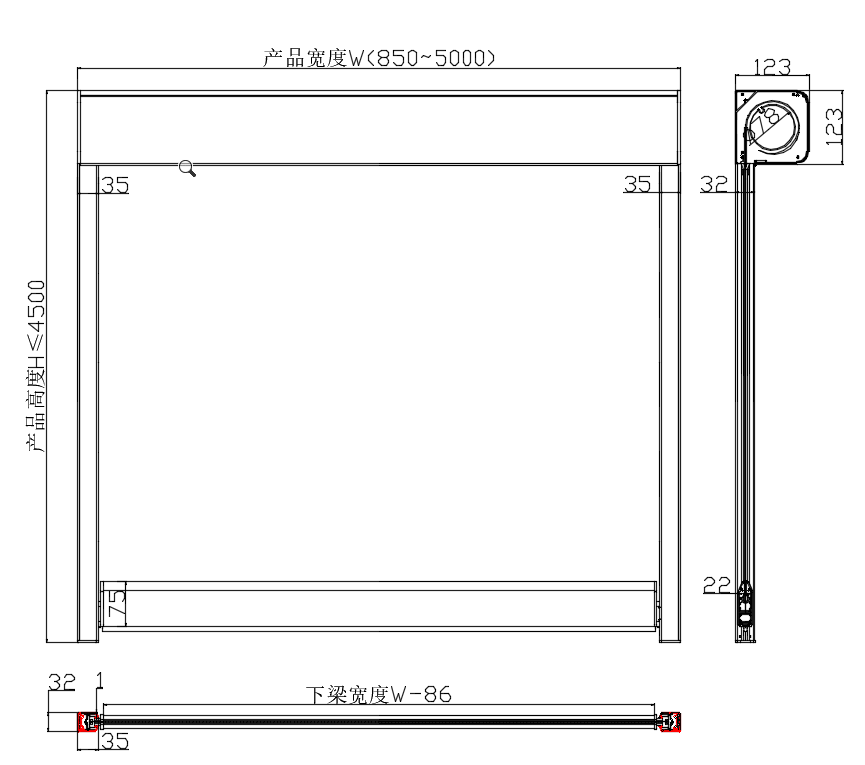

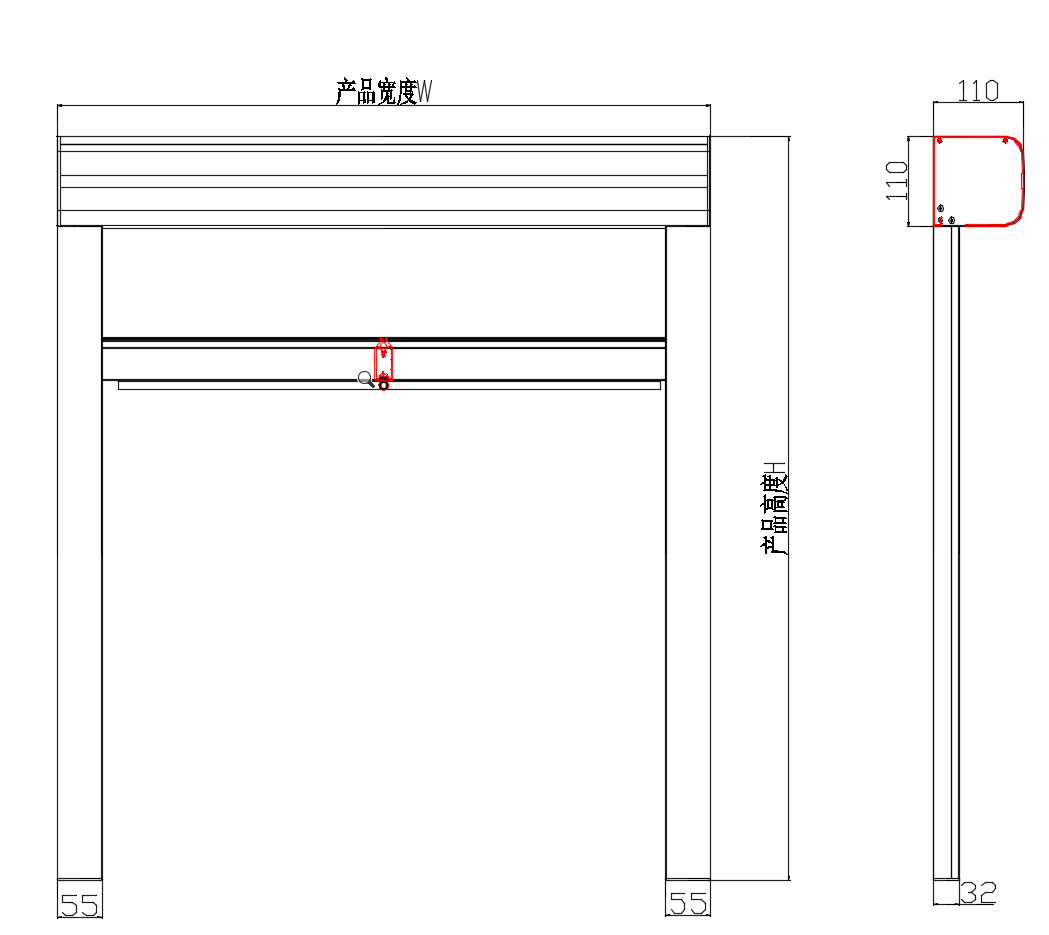

External dimensions |
|
|
|
|
· High windproof reliability : Patented zipper interlocking mechanism + wind tunnel testing, resulting in a repair rate lower than the industry average;
· Complete intelligent integration : covering both residential smart homes and commercial building intelligent control ;
· All-weather adaptable : Fluorocarbon aluminum profiles, weather-resistant fabrics, suitable for high temperature and humidity in the south, sandstorms in the north, and salt spray in the coastal areas;
· Multifunctional : provides sunshade and cooling, rain protection, privacy partition, and mosquito prevention; reduces indoor temperature by 5–10℃ in summer and reduces air conditioning energy consumption by about 30%.
· Standardization + Customization : Standard sizes are readily available and delivered quickly; irregular shapes and extra-large openings can be custom-designed.
· Comprehensive warranty : Long warranty on aluminum profile structure, and multi-year warranty on motor and fabric.
